CODE:100602

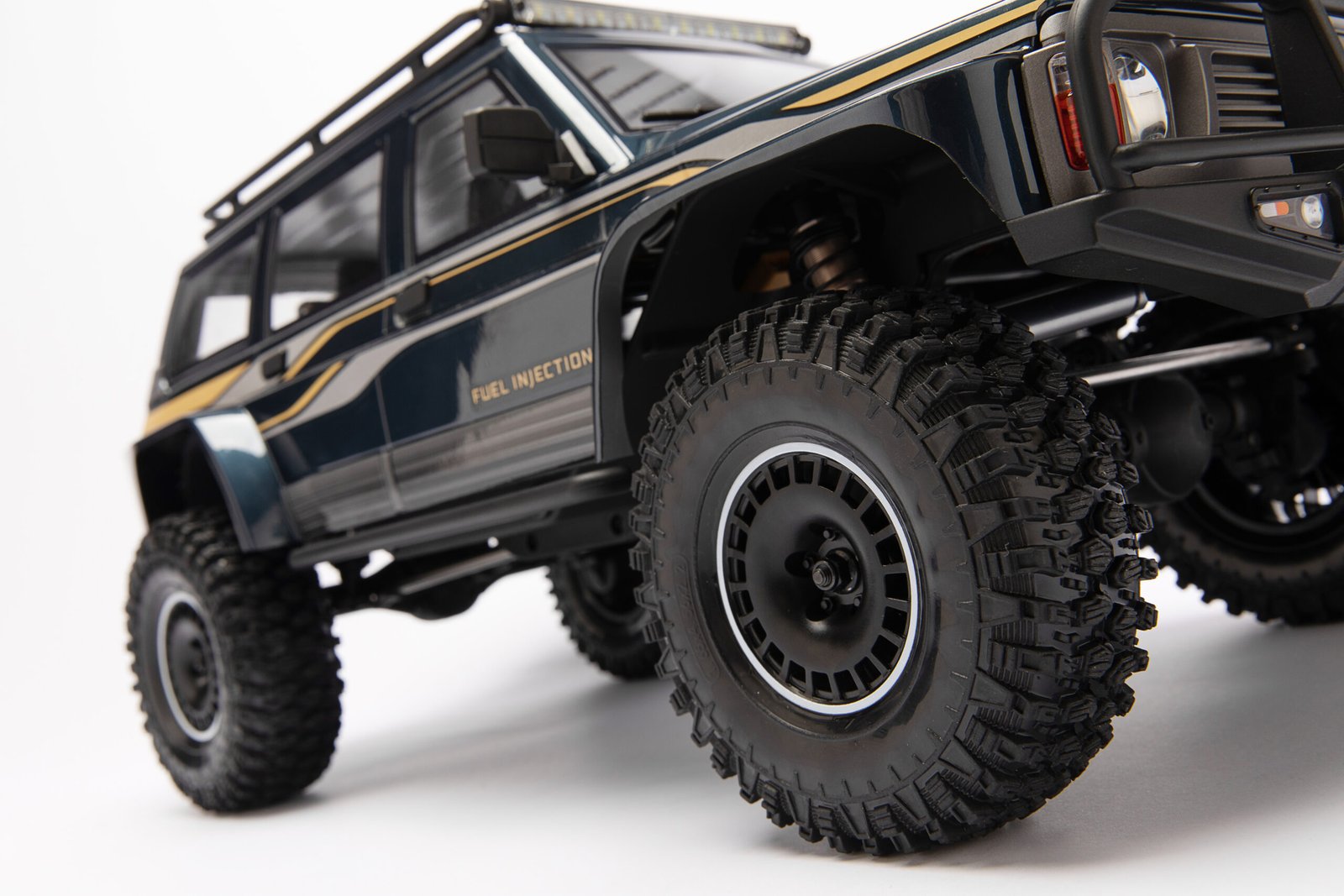

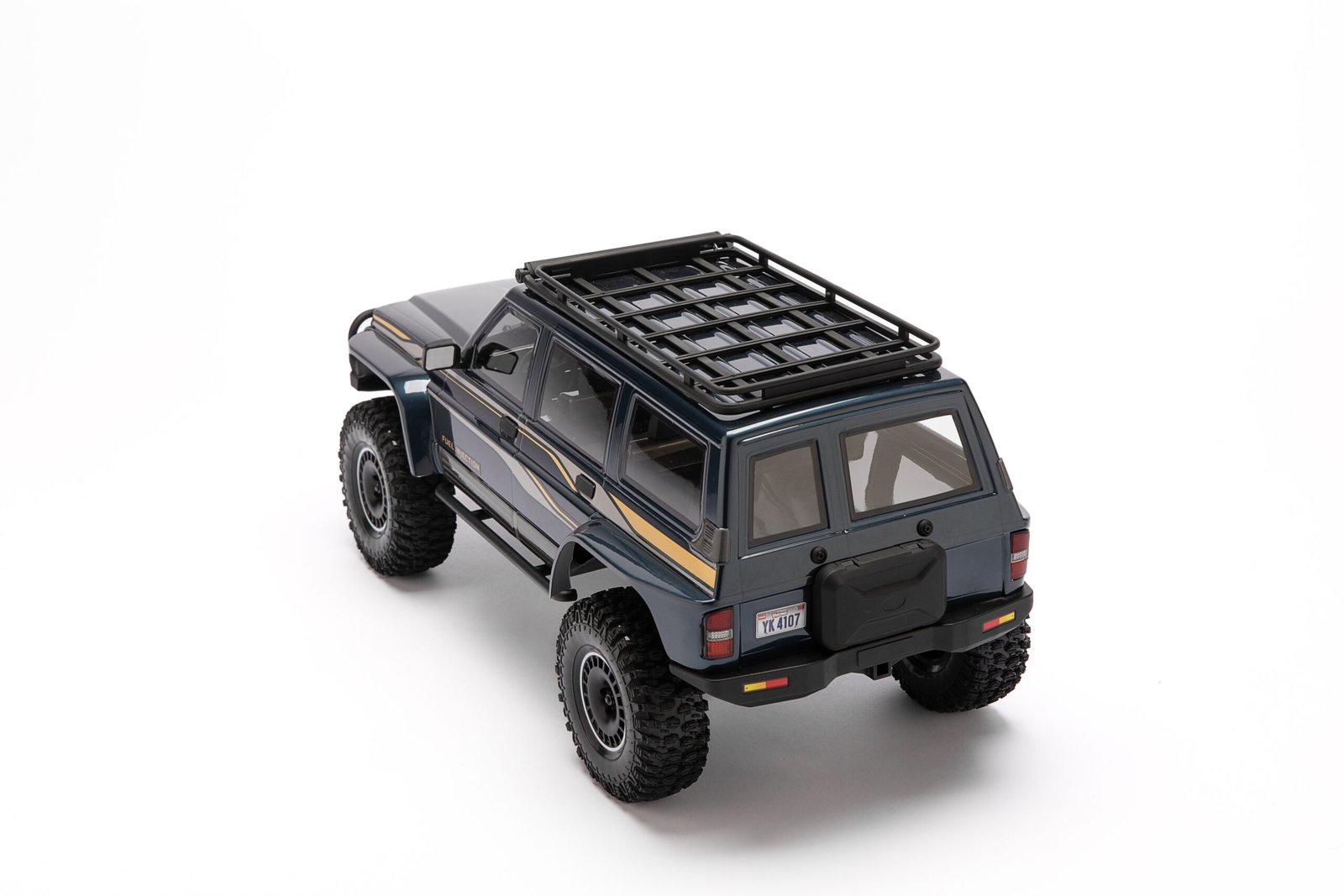

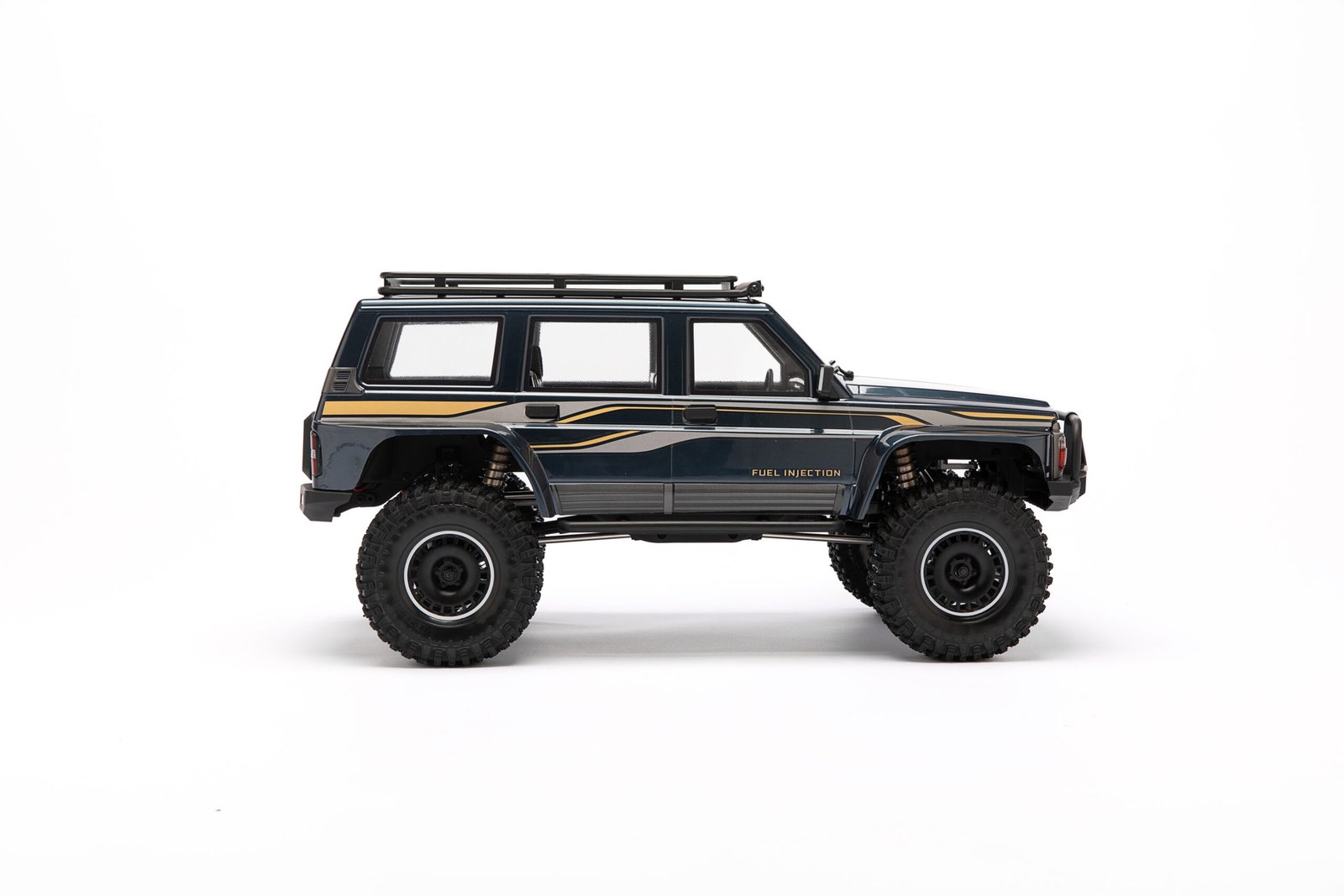

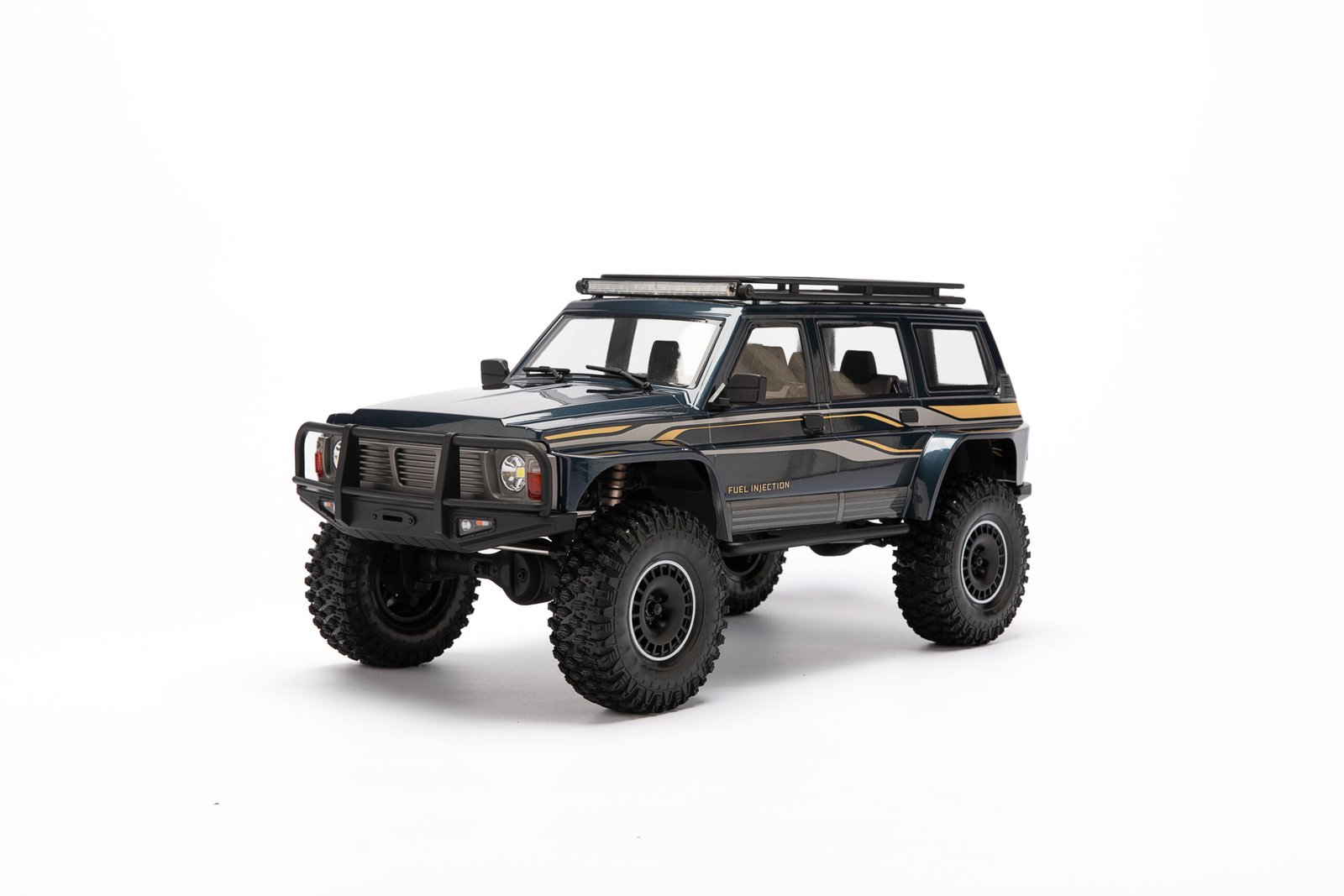

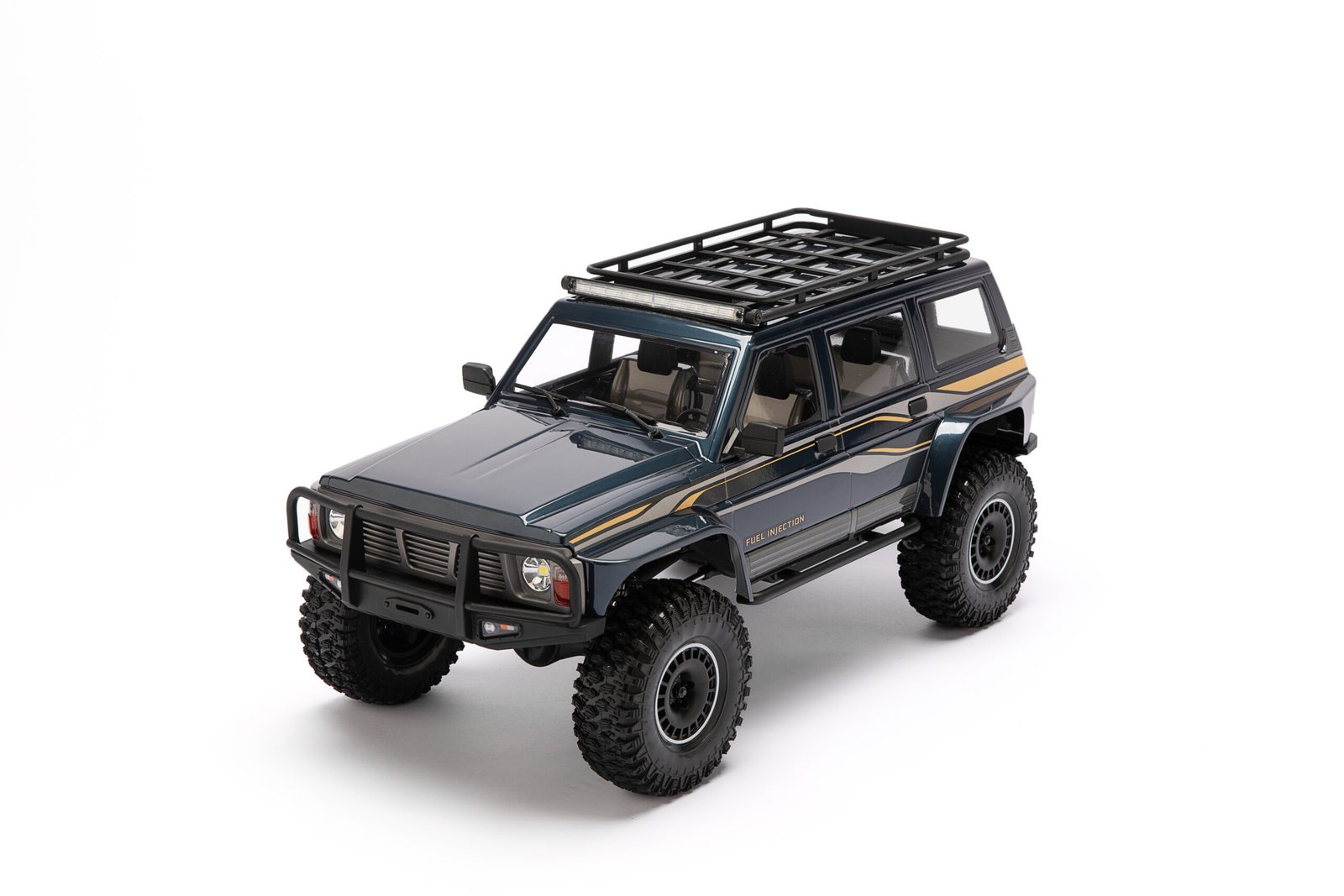

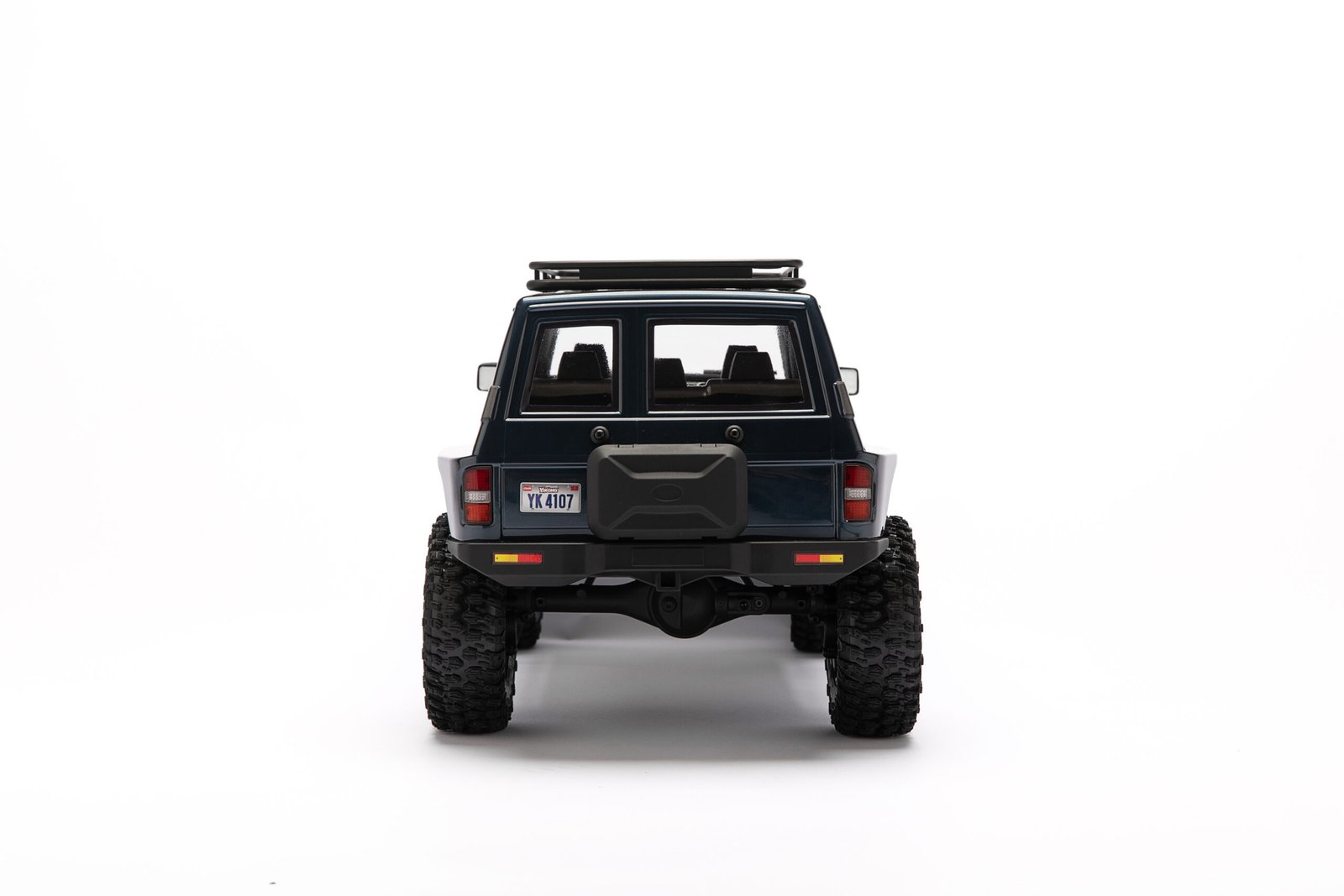

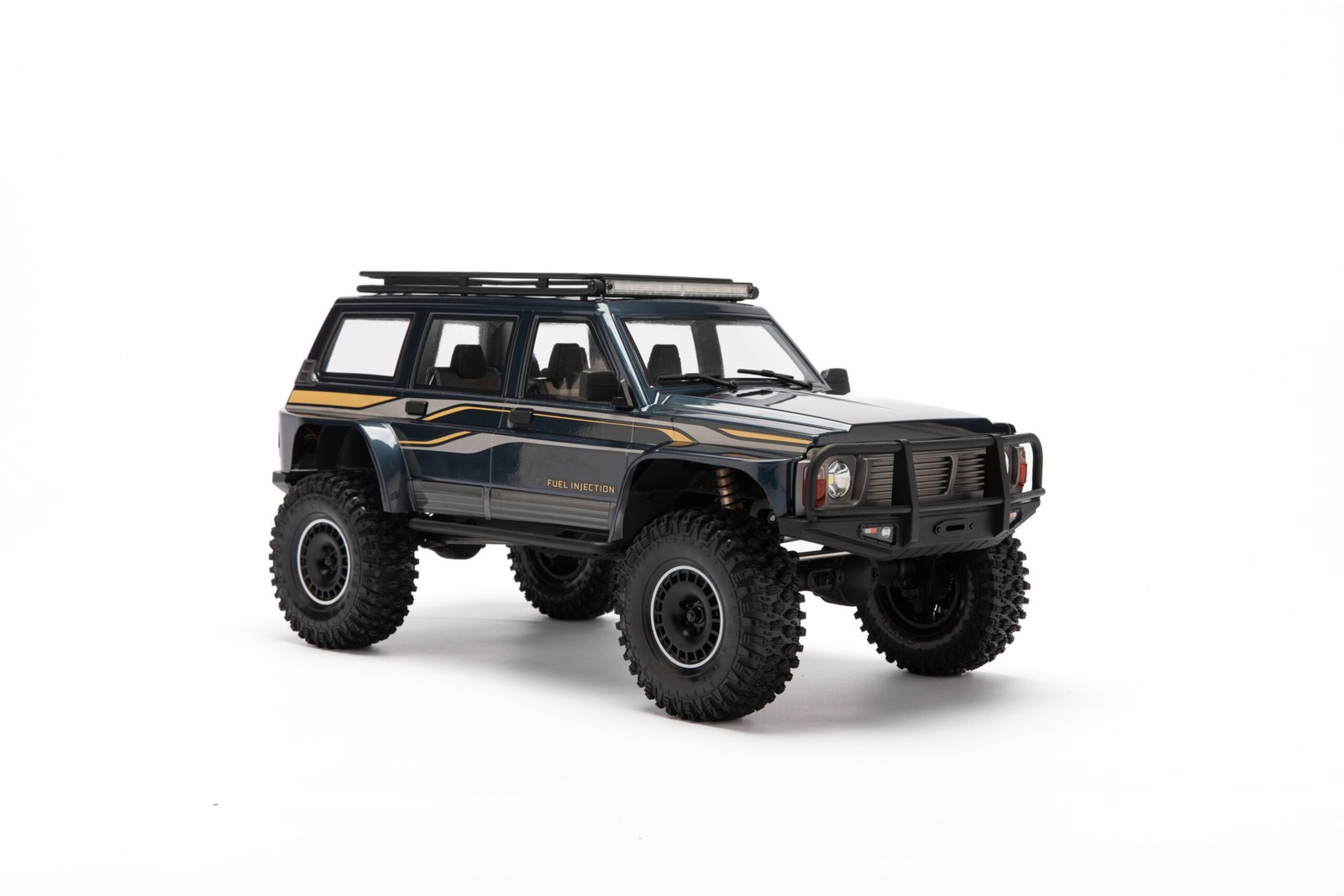

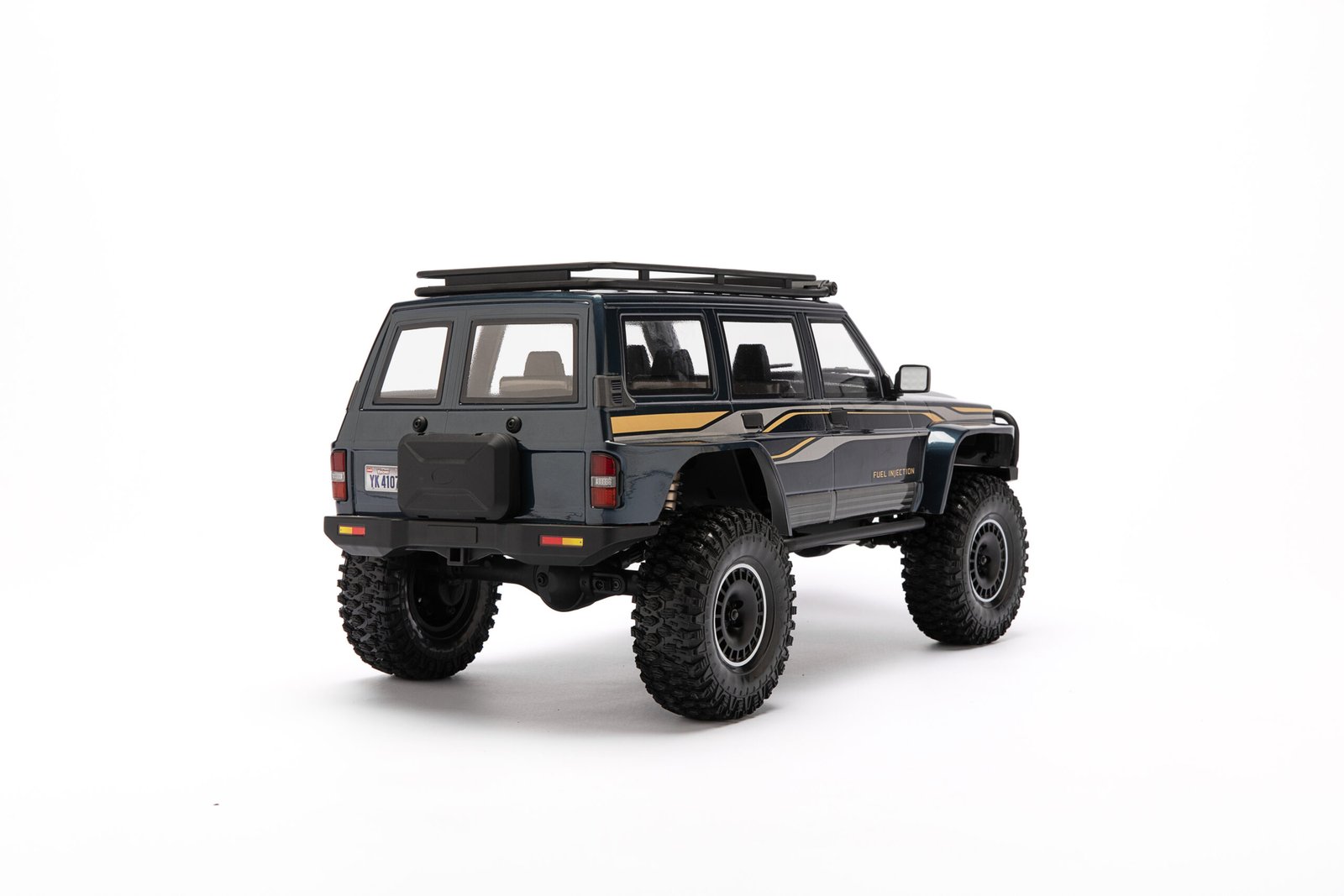

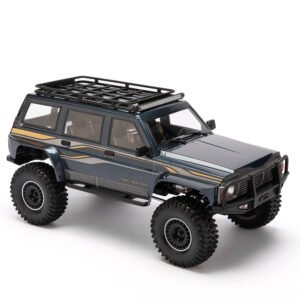

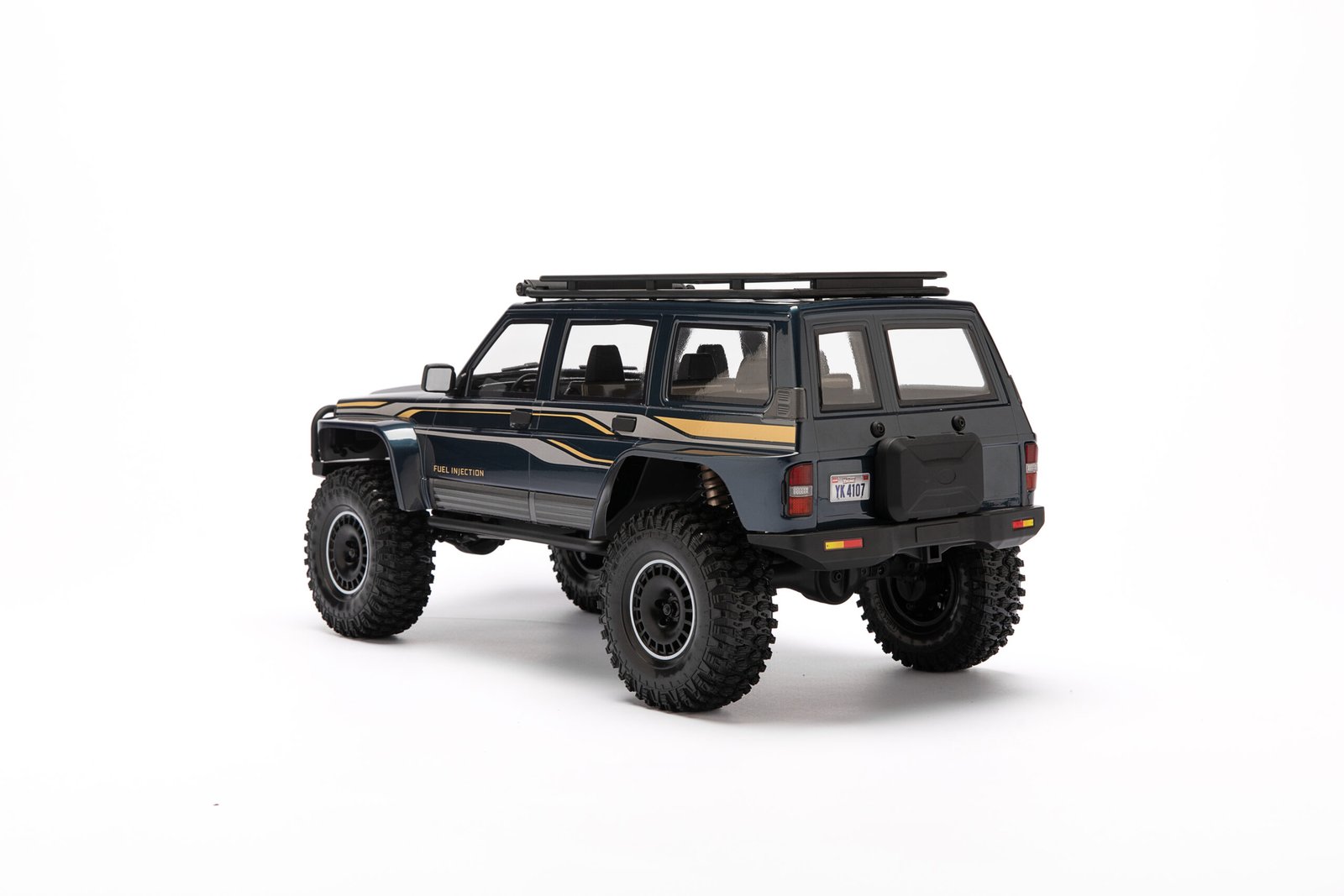

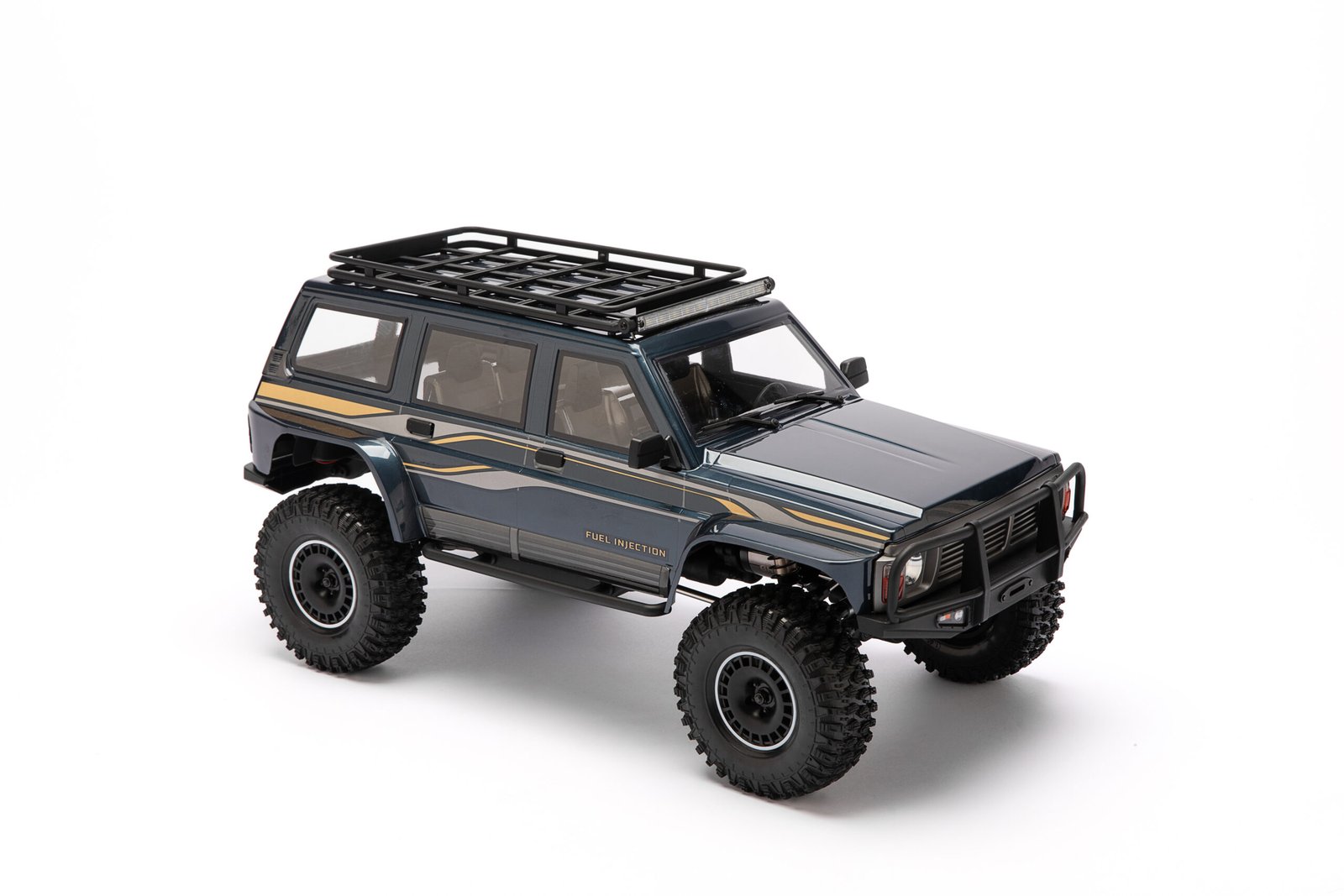

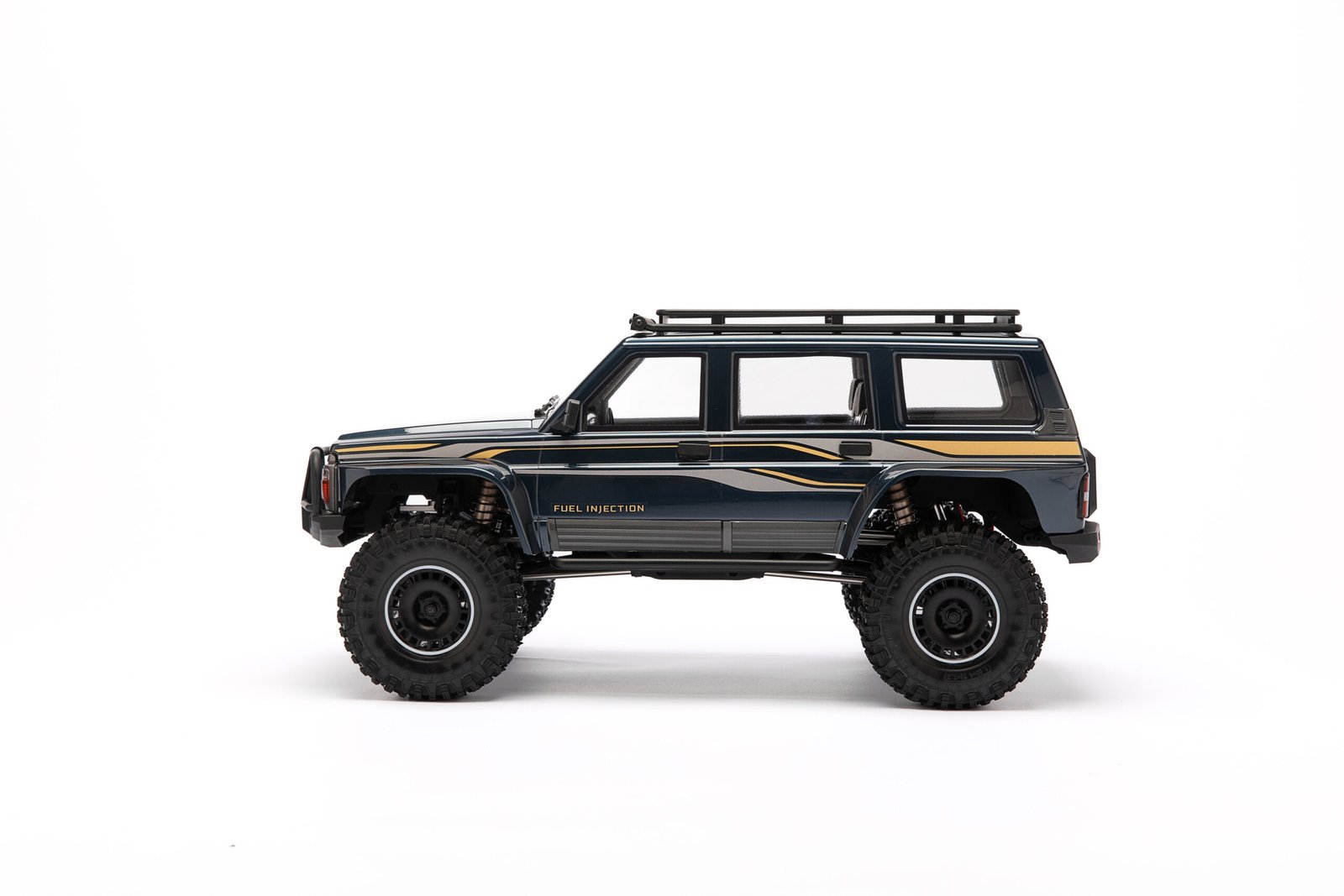

Product information “Yikong 4107PE Crawler Pro Brushless 1/10 DARK BLUE”
The YK4107 PRO is Yikong’s latest 1/10 crawler model. With advanced engineering including a newly optimized LCG chassis design, durable components, and true brushless power, this crawler delivers real off-road performance! Thanks to its portal axles, patented DIG function (which locks a single rear wheel for a tighter turning radius), and 2-speed transmission, it’s perfect for demanding climbing tracks and off-road enthusiasts who value realism and performance.
Features
- 1:10 4WD crawler with portal axles and Tank Turn / DIG function
- Brushless outrunner motor (2100KV) with 60A ESC
- 2-speed transmission (High/Low) switchable via transmitter
- All-metal gear system, CVD driveshafts, full ball bearings
- Hydraulic oil-filled shock absorbers, fully adjustable
- 25kg digital metal-gear servo with built-in damping

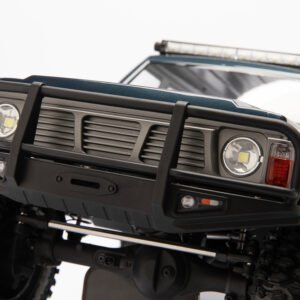

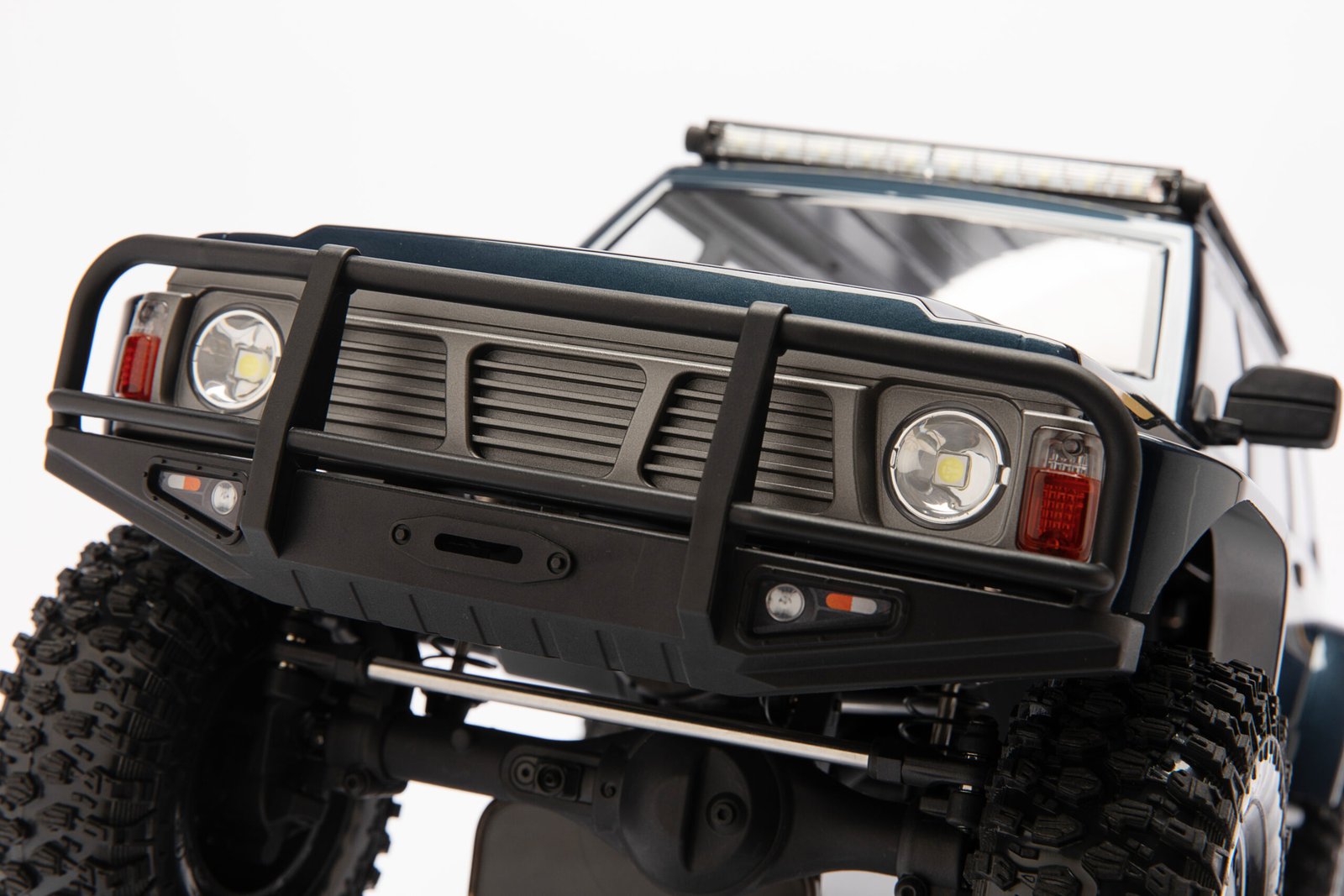

- LED lighting system (front & rear) switchable via transmitter

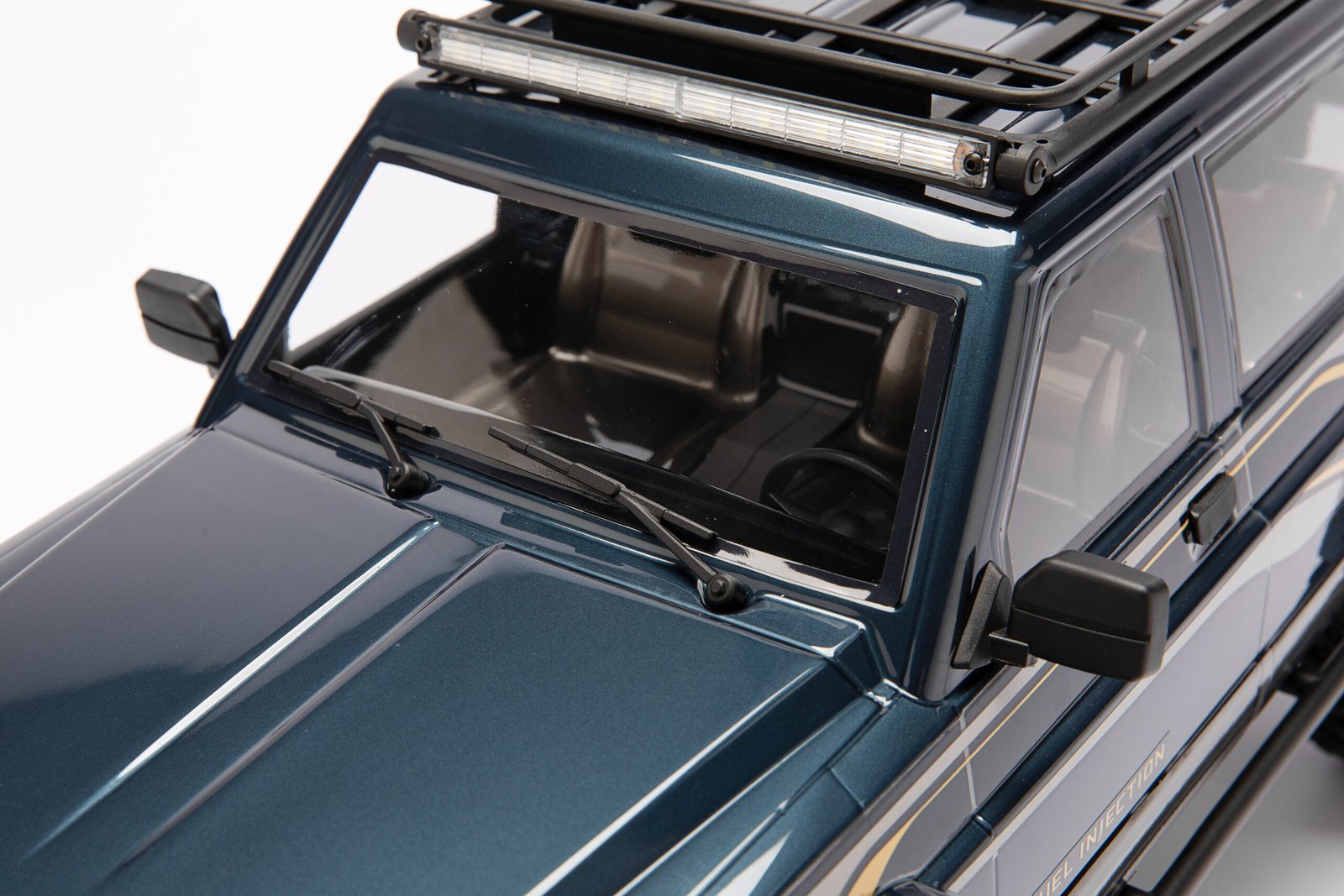

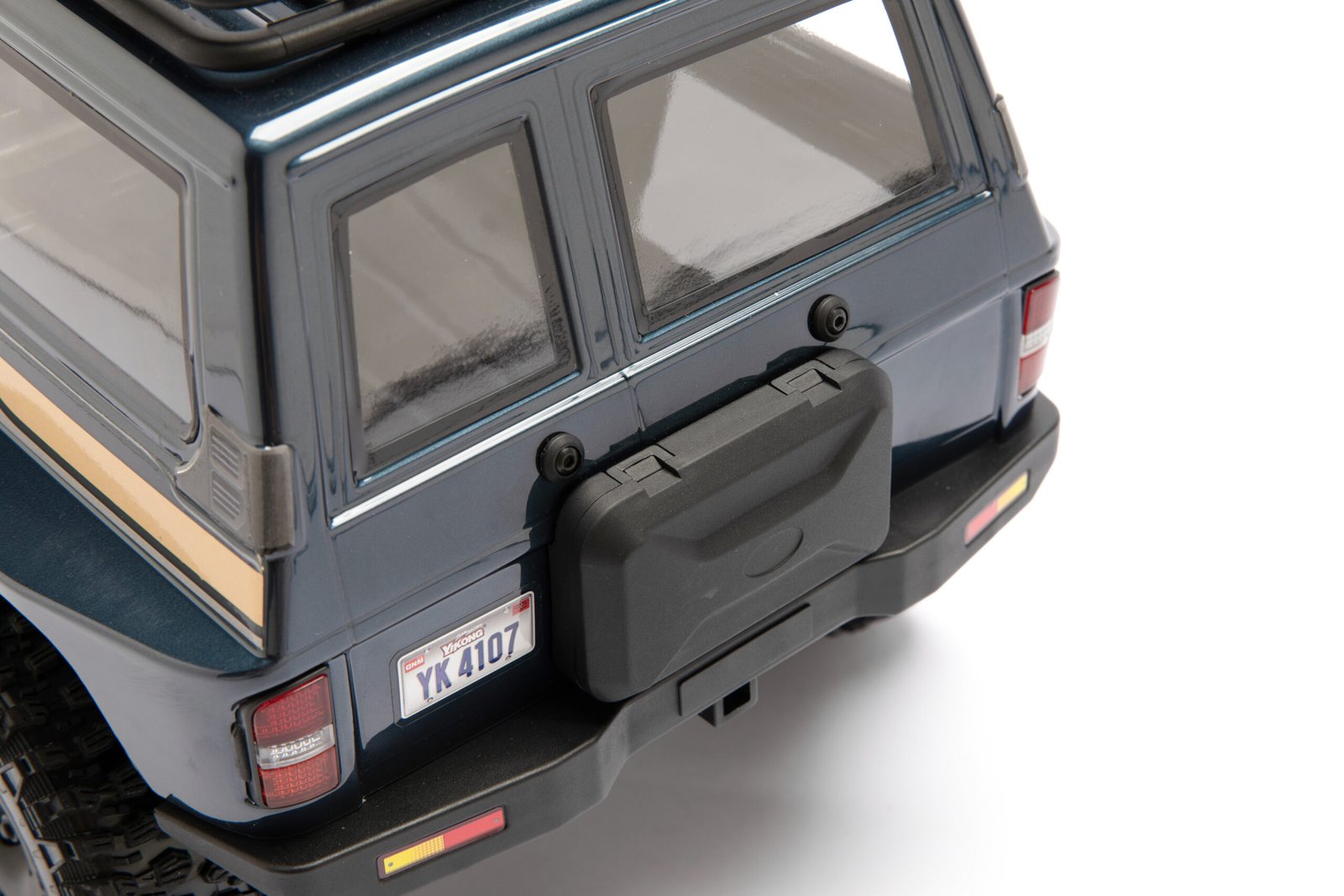

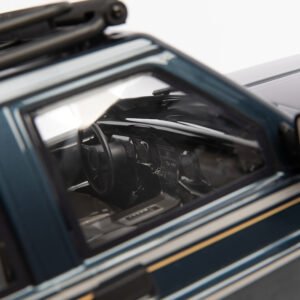

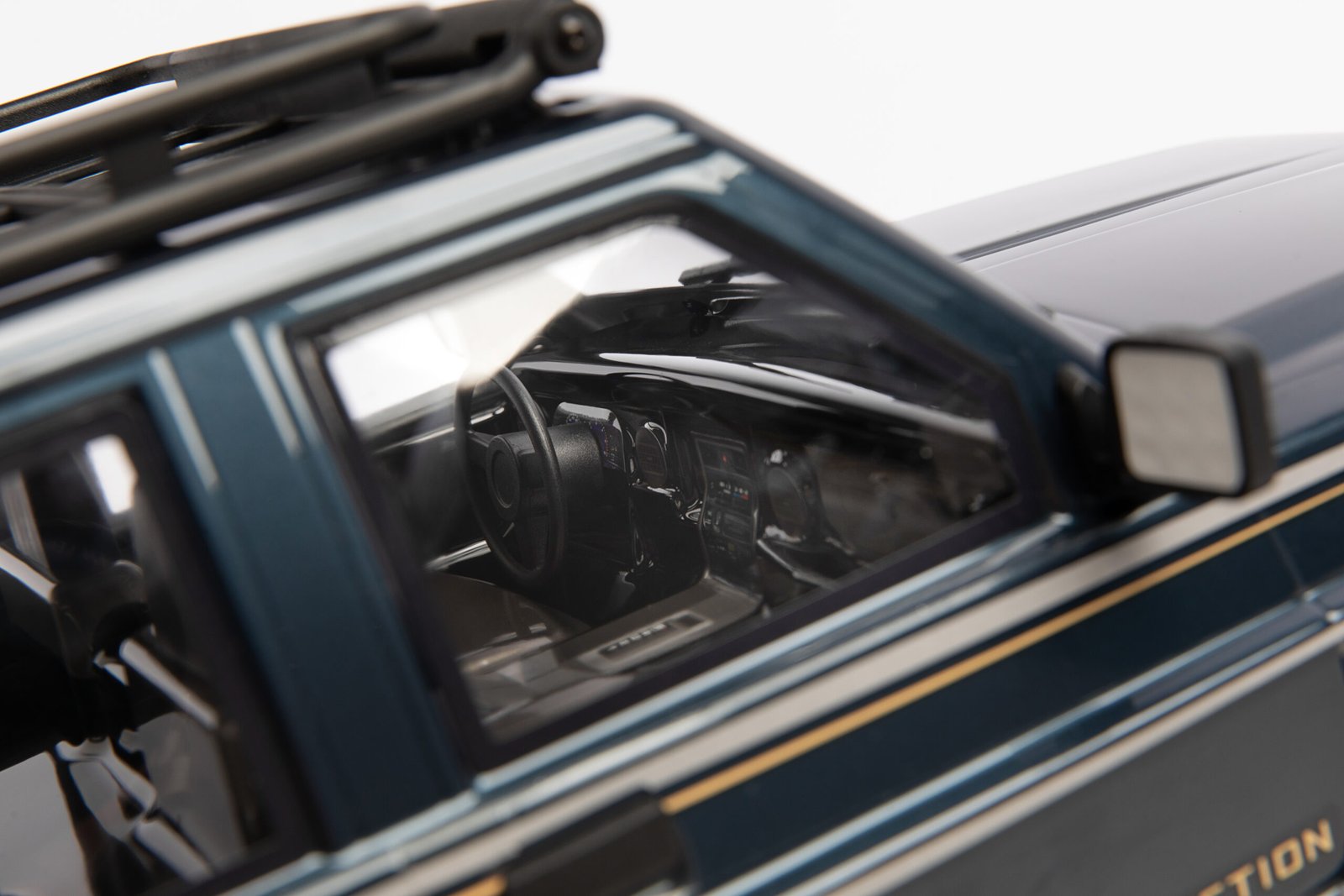

- Polycarbonate body with simulated interior detail
- Optimized Low-Center-of-Gravity (LCG) chassis design
- 2.4GHz 10-channel radio system with Climb/Race mode
Technical Specifications
| Scale: | 1:10 |
| Wheelbase: | 325 mm |
| Track width: | 267 mm |
| Ground clearance: | approx. 65 mm |

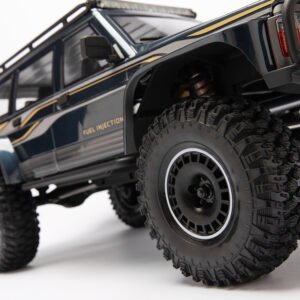

| Tires: | 116 × 42 mm (crawler tread) |
| Dimensions (L×W×H): | 521 × 247 × 267 mm |
| Weight: | approx. 3.1 kg |
| Steering angle: | approx. 40° |
| Motor: | Brushless outrunner 2100KV |
| ESC: | 60A brushless (water-resistant) |
| Servo: | 25kg digital metal gear servo |
| Drive system: | 4WD with portal axles & DIG rear axle control |
| Shock absorbers: | Oil-filled (hydraulic, aluminum housing) |
| Transmission: | 2-speed, switchable High/Low |
| Chassis: | LCG design |
| Lighting: | LED front and rear, remote controlled |
| Recommended battery: | 3S LiPo 5200–6500mAh (not included) |
| Remote control: | 2.4GHz, 10-channel |
Scope of delivery

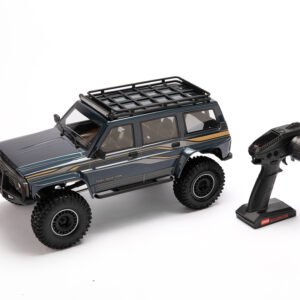

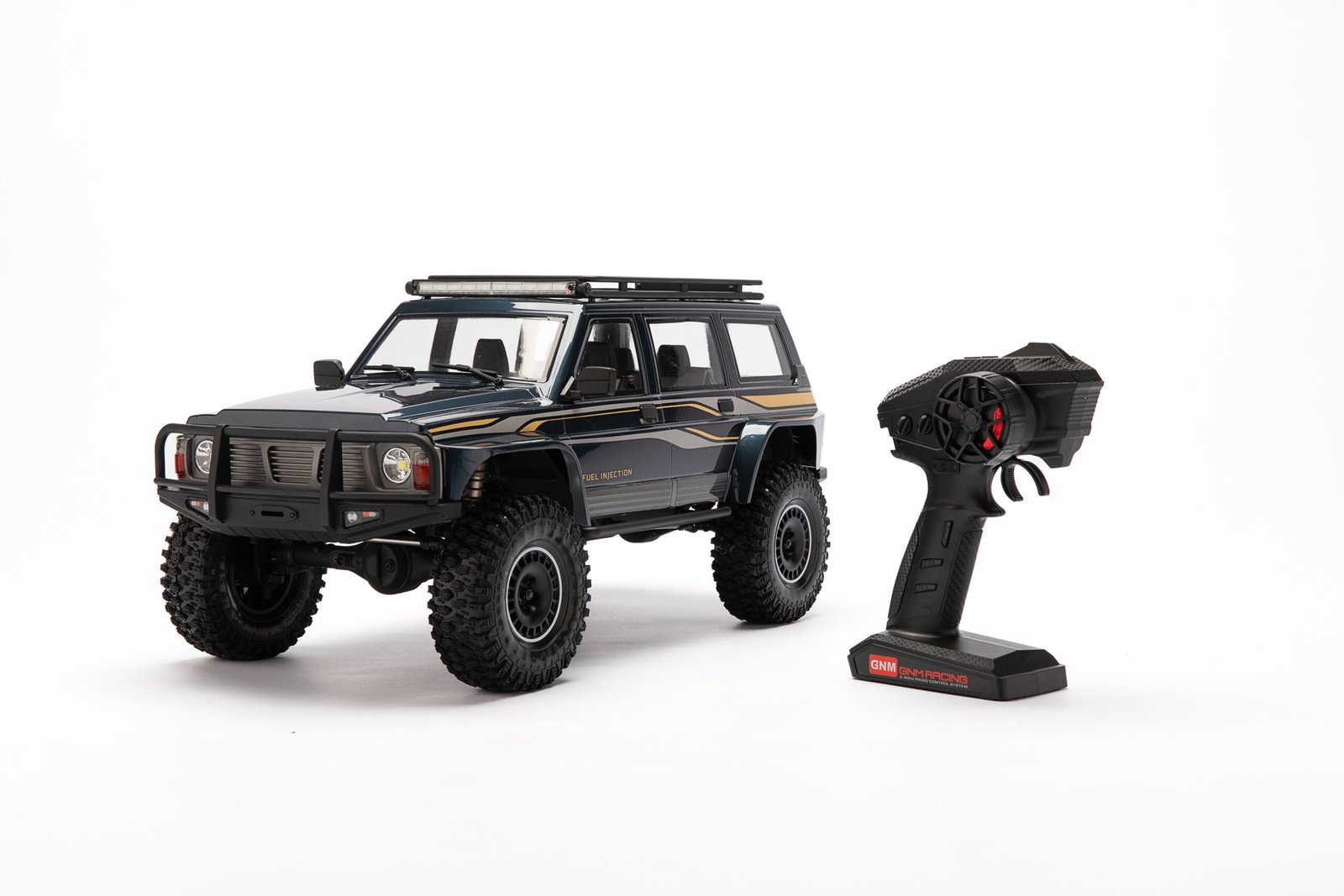

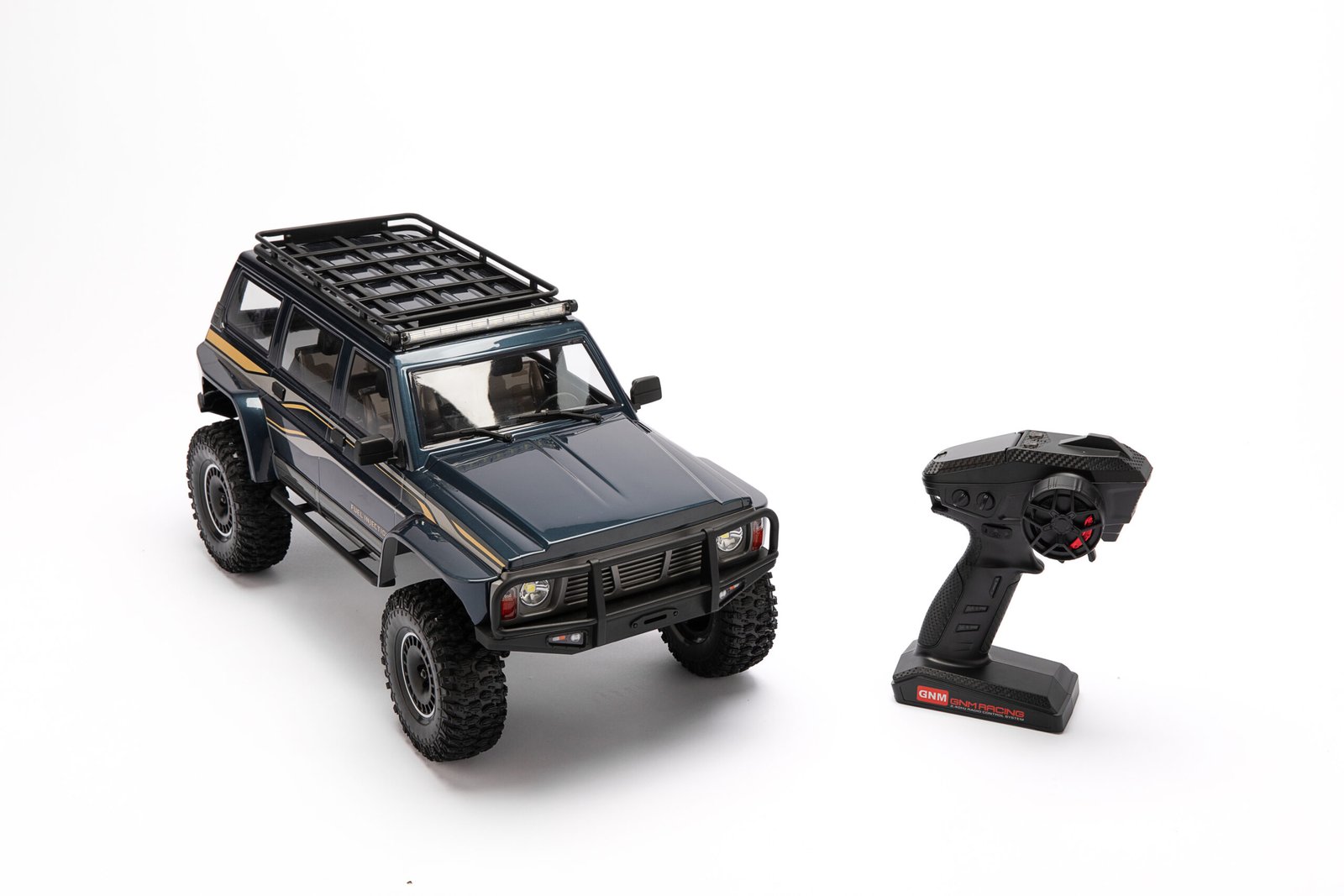

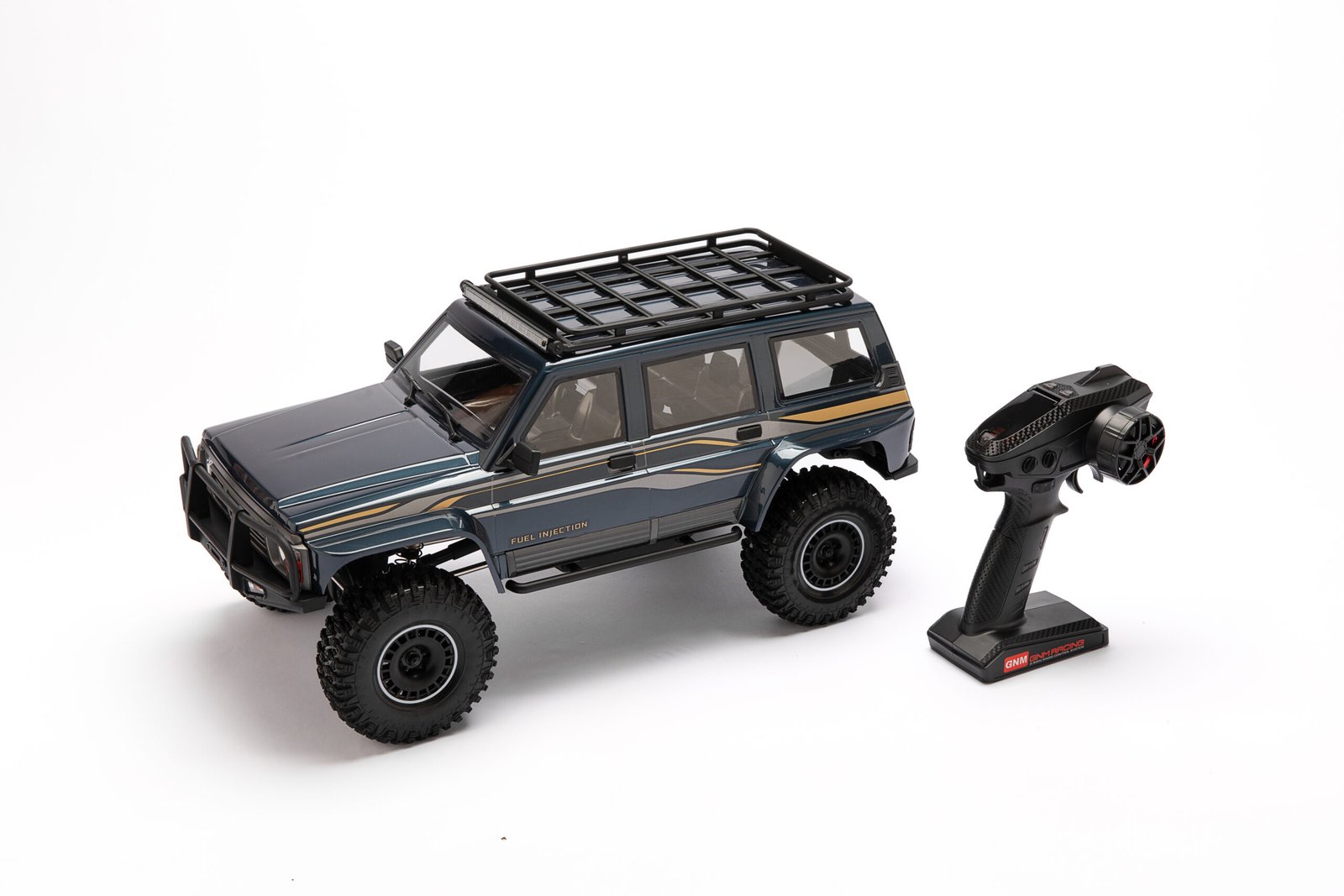

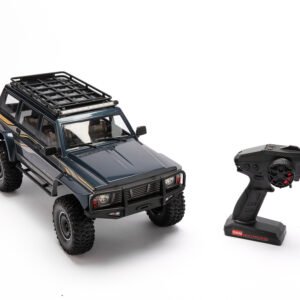

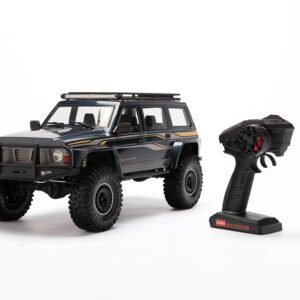

Pre-assembled RC crawler (RTR, without battery & charger), 10-channel transmitter, user manual.
