| Weight | 0.5 kg |
|---|---|
| Dimensions | 4 × 2.5 × 2 in |

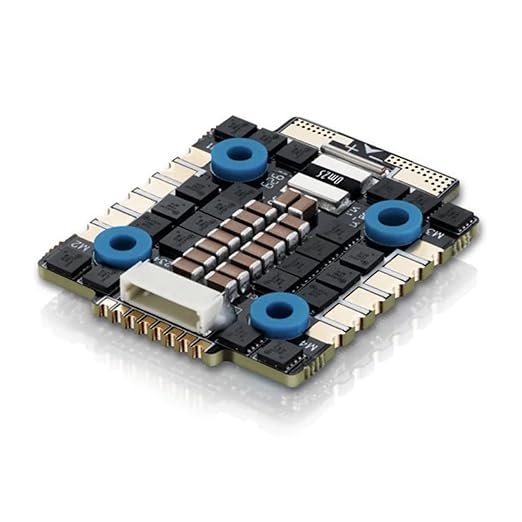

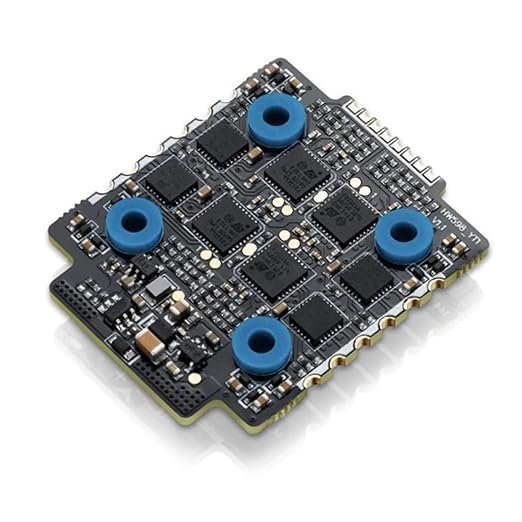

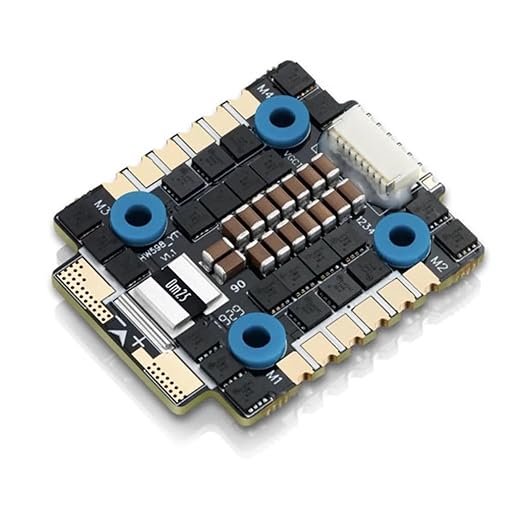

Hobbywing XRotor FPV G2 45A 4-in-1 ESC!
Generation 2 of the Hobbywing XRotor 45A AM32 4-In-1 ESC delivers superior power and performance with support for 48-96k PWM output and Dshot300/600. Built with imported MOSFETs and high-quality ceramic capacitors, this ESC is durable and strong enough to survive rough handling in any build.
Features:
• High-performance 32-bit microprocessor with a running frequency of up to 120MHz for excellent performance.
• All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
• The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
• The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).
• Dshot signaling is supported at any rate up to at least Dshot300/600. The input signal is automatically detected by the ESC upon power-up.
• The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding lost crafts.
• Features AM32 firmware, upgradable, continually developed, and functional.
Specs:
Brand: Hobbywing
Model: XRotor FPV G2 45A 4in1 ESC
Cont./Peak Current: 45Ax4/60Ax4
Input Voltage: 3-6S Lipo
BEC output: NO
Input Wires: Red-14AWG-100mm*1
Output Wires: Black-14AWG-100mm*1
Input Connectors: No wires but solder tabs
Output Connectors: XT60(w/ Wires Soldered on)
Size: 40x33x5mm
Weight: 12g
Firmware: AM32 XROTOR45 F421
ESC Programming: Supported
Web Parameter Adjustment: https://am32.ca
DEO: Supported
Dshot300/600,PWM: Supported
Timing: Supported
Motor Rotation: Supported
Applications: 100-300mm FPVs
Included:
1x Hobbywing XRotor FPV G2 45A 4in1 ESC
