| Weight | 0.9 kg |
|---|---|
| Dimensions | 6 × 3.5 × 3.5 in |

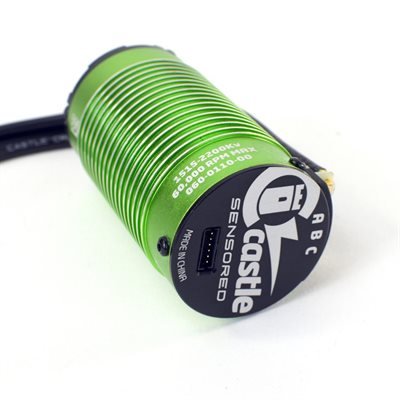

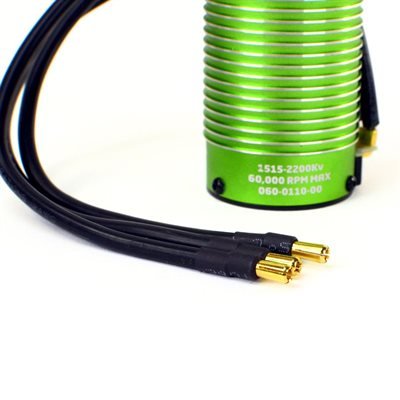

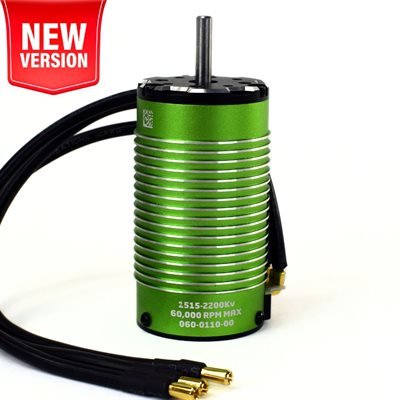

CASTLE 1515 SENSORED MOTOR – 2200KV (MOD 4MM BULLETS / 12AWG WIRE)
679.00 QAR
2 in stock
- Minimum Input Voltage : 2S
- Maximum Input Voltage : 4S
- Sensored Capable : Yes
- Recon G6 Certified Motor : No
- ROAR Certified Motor : No
- Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let’s face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!You might be familiar with the brute 1:8 scale version of the 1515-2200Kv V2 (10AWG wire and 6.5mm bullets) that has overpowered buggies, truggies, on-road vehicles for years. Now we are offering our modified eBuggy version (paired with Mamba X 1:10 scale ESC, click here for details), tailored with pre-soldered 4mm bullet connections and 12AWG wire!
Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. Anew rotor replacement will be available in the future. Check back here for updates.
1515-2200Kv V2 FEATURES:- Input Voltage range: 2s-6s LiPo (4s max with Mamba X or Cobra 10)
- Redesigned rotor and stator assemblies.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
- Proudly Designed and Supported in Kansas, USA.
- Backed by Castle Creations’ 1-YEAR WARRANTY
Additional product details found under MORE FEATURES and SPECIFICATIONS.
1515-2200Kv V2 APPLICATIONS:
Ideal for 1:8 scale buggies on-road vehicles and 1:10 scale monster trucks up to 9 lbs when paired with the Mamba X or Cobra 10 ESCs. Vehicle examples: Tekno EB48, Losi 8IGHT-XE, Mugen MBX8R, Kyosho Inferno MP10e, Associated RC8B4
