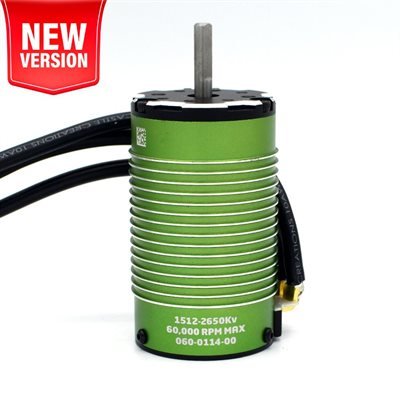

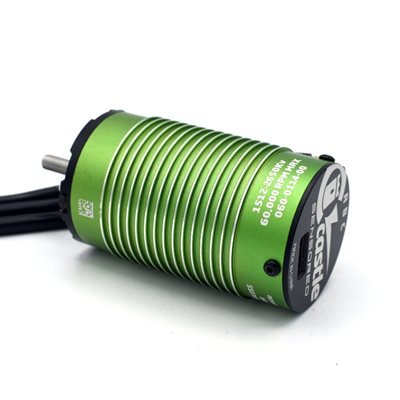

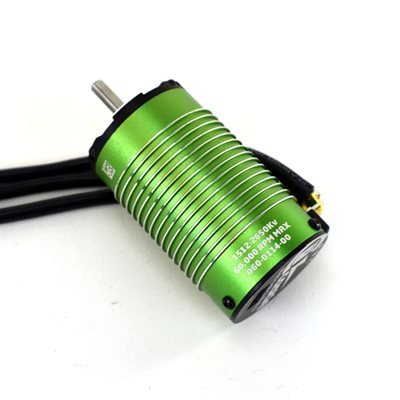

CASTLE 1512 SENSORED MOTOR – 2650KV V2

Categories: ESC & MOTORS Brand: CASTLE

679.00 QAR

2 in stock

Product #: 060-0114-00

Our dedication to excellence compels us to continuously enhance the user experience, optimize performance, and meticulously craft every detail of our products to deliver maximum satisfaction. Even the finest products can be improved, which is why we’re thrilled to unveil the newly revamped 1512-2650Kv V2. This updated version features a completely re-engineered rotor and stator, leading to improved magnetic flux. The result? Greater efficiency, smoother startups, lower temperatures, and extended run times!

Note:011-0131-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back herefor updates.
1512-265Kv V2 FEATURES:

Input Voltage range: 2s-4s LiPo
Redesigned rotor and stator assemblies.
Reduced magnetic cogging, producing less residual drag brake.
Increased efficiency, resulting in lower temperatures and longer run times.
Smoother start-up, reducing cogging or stuttering when starting from a stop.
Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets

Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
High-Performance 0.2mm Steel Lamination Stacked Stator
Oversized, low-resistance, gold-plated solder tabs
Sensor board with High Quality Temperature-Stabilized Sensors
T6 Aluminum CNC Machines Front/Rear End bell
Proudly Designed and Supported in Kansas, USA.
Backed by Castle Creations’ 1-YEAR WARRANTY

1512-2650Kv V2 APPLICATIONS:

Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs.
