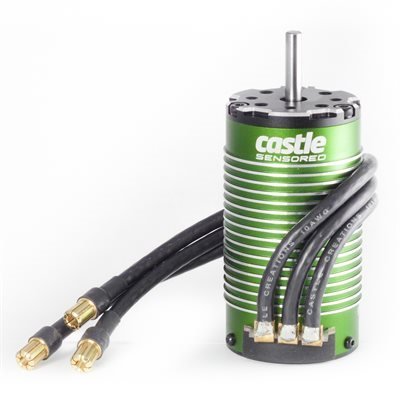

Castle 1512 Sensored 060-0062-00 Motor – 1800Kv

Categories: Brand:

665.00 QAR

2 in stock

  • Minimum Input Voltage : 3S
  • Maximum Input Voltage : 4S
  • Sensored Capable : Yes
  • Recon G6 Certified Motor : No
  • ROAR Certified Motor : Yes

MOTOR FEATURES:



  • Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
  • Oversized gold-plated solder tabs for LESS RESISTANCE and easy soldering.
  • Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
  • ROAR standard sensor port and labeled connections.
  • Proudly designed and supported in Kansas, USA.
  • Backed by Castle Creations 1-YEAR WARRANTY.

COMPONENTS OF THE HIGHEST QUALITY:



  • High strength 180°C grade neodymium sintered magnets
  • 10 AWG high strand count wire with silicone insulation
  • 6061-T6 aluminum heatsink can
  • High quality, temperature-stabilized sensors
  • High-purity, high-temperature copper windings
  • High RPM NMB oversized bearings
  • Hardened stainless steel shaft
  • Stacked stator with high quality 0.2mm steel laminations
  • Kevlar wrapped rotor
Weight 0.89 kg
Dimensions 6 × 3.5 × 3.5 in
