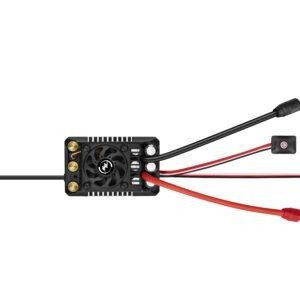

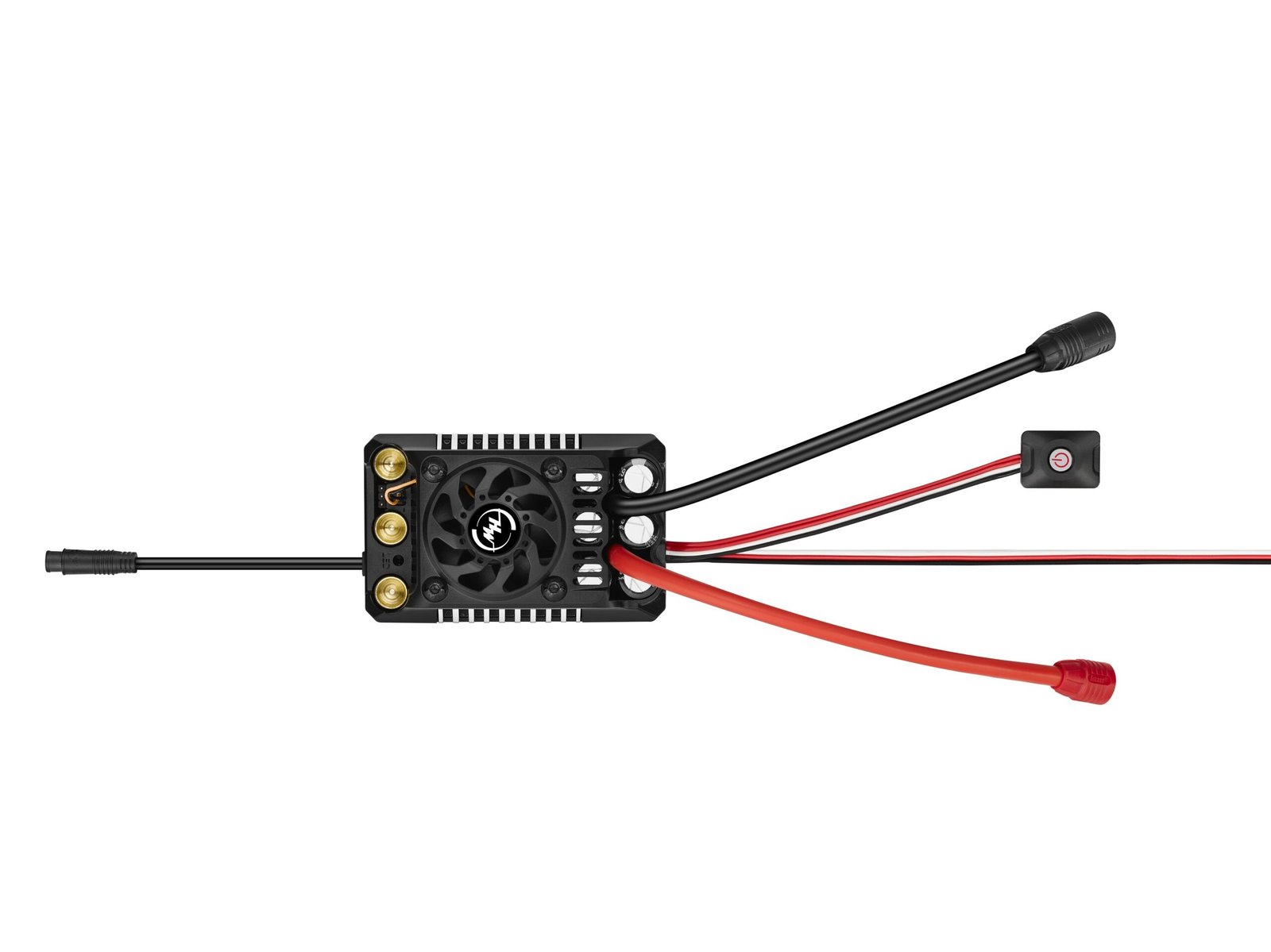

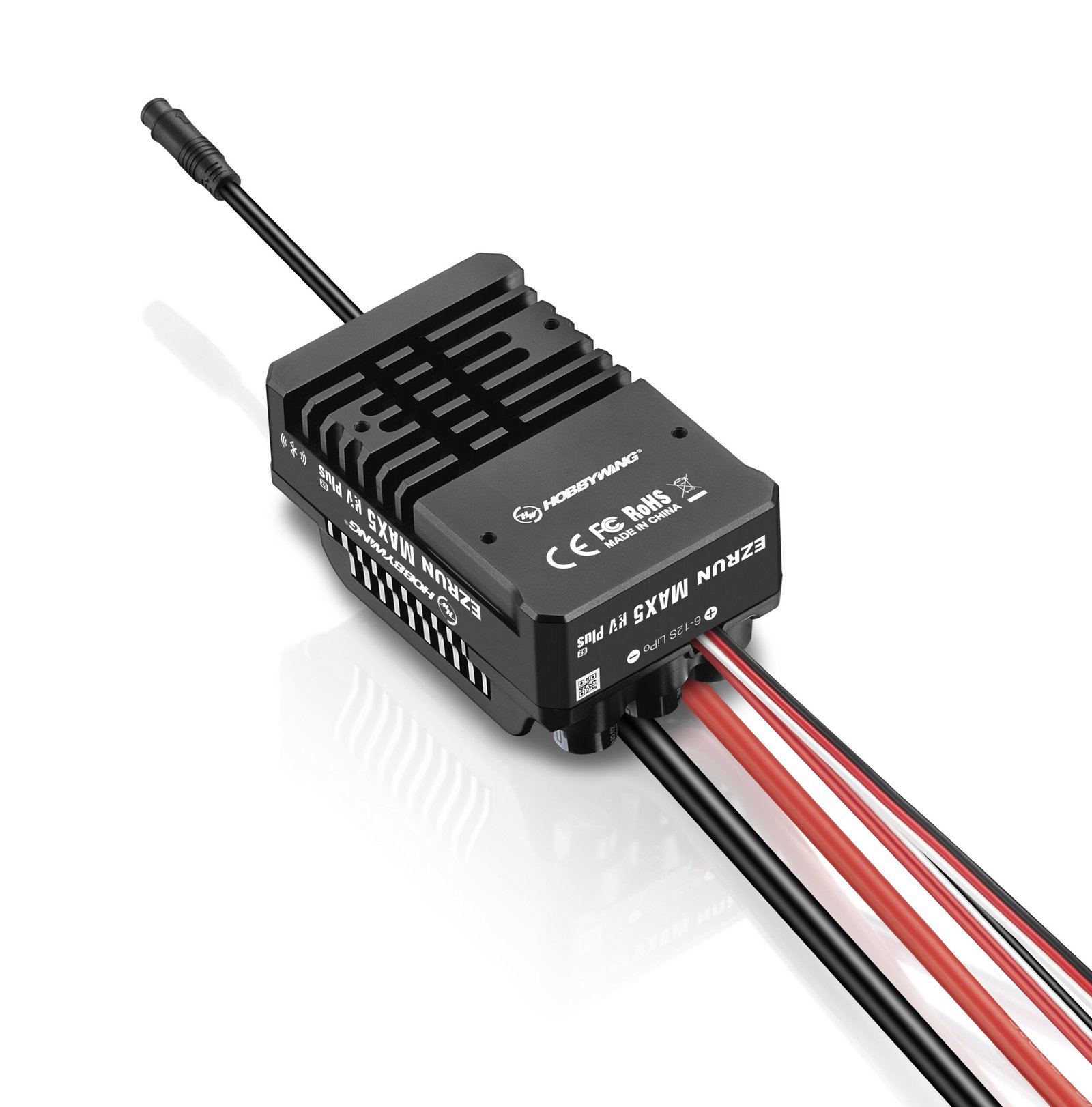

Hobbywing 30104300 EZRun MAX5 HV Plus G2 1/5 Waterproof Sensored Brushless ESC (6-12S)

Supreme Performance, Speed & Raw Power for Large Scale!

Unleash unstoppable power and precision with the Hobbywing EZRun MAX5 HV Plus G2, a next-gen waterproof ESC built to dominate extreme-speed 1/5 to 1/8 scale RC vehicles with smart control, massive current handling, and rugged, all-terrain performance.

About the MAX5 HV Plus G2

Extreme Power Performance

The Hobbywing EZRun MAX5 HV Plus G2 is a cutting-edge waterproof sensored brushless ESC built for extreme-speed applications in 1/5, 1/7, and 1/8 scale RC vehicles. Engineered with an IP67-rated waterproof sensor interface, it thrives in the harshest conditions, whether you’re tearing through snow, water, mud, or dust!

It supports massive 6-12S LiPo power and delivers up to 500A continuous current (8S) or 330A (12S), making it ideal for high-powered truggies, monster trucks, and speed-run builds. It’s built-in ultra-powerful BEC offers adjustable voltage (6V/7.4V/8.4V) with a peak output of 28A, allowing it to effortlessly power even the most demanding high-voltage servos. With AS150 anti-spark plugs and intelligent freewheeling technology, it also ensures safe startups, higher efficiency, and lower operating temps.

Smart Control Integration

Performance tuning is seamless with integrated Bluetooth in the power switch, allowing direct configuration and firmware upgrades via the HW Link mobile app, no additional modules needed. The ESC supports advanced turbo timing (up to 24°) and is optimized for pairing with Hobbywing’s 5690/56118 SD G2 motors, unlocking up to 18% more top-end speed.

A built-in data logging module records up to 10 minutes of performance data, complete with visual curve graphs for easy analysis. With a robust 4080?F built-in capacitor and dual programming methods (app or LCD/LED programmer), the MAX5 HV Plus G2 combines brute power, intelligent control, and rugged reliability, making it a top-tier ESC choice for serious RC enthusiasts pushing the limits of speed and performance.

Features:

• Waterproof and dustproof for all-weather driving
• Handles 6-12S LiPo batteries for extreme power
• Delivers up to 500A continuous current (8S)
• Built-in BEC supports 6V, 7.4V, and 8.4V output
• Bluetooth built into the switch for easy setup with your phone
• Turbo timing support for more top speed
• Built-in data logging shows performance history
• Large 4080?F capacitor removes need for external caps
• Anti-spark connectors protect plugs and fingers
• Works with LED/LCD programmers or mobile app
